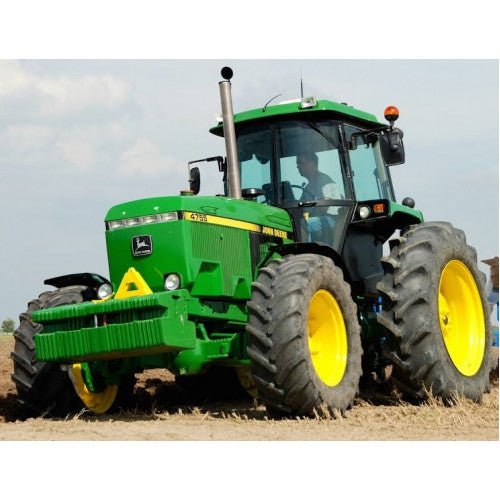

TM1461 - John Deere 4555, 4560, 4755, 4760, 4955, 4960 Tractor Diagnosis and Tests Service Manual

It is Factory Diagnosis and Tests Technical manual for John Deere 2WD or MFWD Tractors Models 4555, 4560, 4755, 4760, 4955, 4960

This manual contains high quality images, circuit diagrams, diagnostic procedures to help you to diagnostic, troubleshoot and repair your truck. This document is printable, without restrictions, contains searchable text.

This is Diagnostic manual, including electrical and hydraulic wiring diagrams, Repair manual are sold separate.

Covered models:
  4555
  4560
  4755
  4760
  4955
  4960

Contents:


    SECTION 210-GENERAL INFORMATION
        Group 05-Safety
        Group 10-Machine Operational Checkout
        Group 15-General Reference Information
        Group 20-Test Equipment Calibration
    SECTION 220-ENGINE OPERATION AND TESTS
        Group 05-General Information
        Group 10-System Diagnosis
    SECTION 230-FUEL AND AIR OPERATION AND TESTS
        Group 05-Fuel System
    SECTION 240-ELECTRICAL OPERATION AND TESTS
        Group 05-Operational Checks
        Group 10A-Diagnosis Introduction
        Group 10B-Starting Circuit
        Group 10C-Charging Circuit
        Group 10D-INTELLITRAK® System
        Group 10E-Lighting Circuits
        Group 10F-Accessory Circuits
        Group 25-Reference Diagrams and Charts
    SECTION 250-QUAD-RANGE TRANSMISSION
        Group 05-Operational Checks
        Group 10-Diagnosis
        Group 25-Theory of Operation
    SECTION 255-POWER SHIFT TRANSMISSION
        Group 05-Power Shift Operational Checks
        Group 10-Power Shift Diagnosis
        Group 25-Power Shift Theory Of Operation
    SECTION 256-PTO, AXLES AND DIFFERENTIALS
        Group 05-PTO, Axles and Differentials Operational Checks
        Group 10-PTO, Axles and Differential Diagnosis
        Group 15-PTO, Axles and Differentials Tests
        Group 25-PTO, Axles and Differentials Theory of Operation
    SECTION 260-STEERING AND BRAKES
        Group 05-Steering/Brakes Operational Checks
        Group 10-Steering/Brakes Diagnosis
        Group 25-Steering/Brakes Theory of Operation
    SECTION 270-HYDRAULIC SYSTEM
        Group 05 -Hydraulic System Operational Checks
        Group 05.1-Hitch System Operational Checkout
        Group 10 -Hydraulic System Diagnosis
        Group 10.1-Hitch System Diagnosis
        Group 15 -Hydraulic System Tests
        Group 15.1-Hitch System Tests
        Group 25 -Hydraulic System Theory of Operation
        Group 25.1-Hitch System Theory of Operation
    SECTION 290-OPERATOR STATION
        Group 05-Operational Checks
        Group 10-System Diagnosis
        Group 25-Theory of Operation
    SECTION 299-DEALER FABRICATED TOOLS
        Group 05-Fabricated Tools
    Index

Pages - 1000
Language: English
Format: PDF

Unlimited downloads, Lifetime Access
Access PDF Contents & Bookmarks
Step-by-step instructions & clear diagrams
Trustworthy information directly from the manufacturer
Get an exchange if you can't find the inform you need (See detail)
Detailed instructions for opening and using the manual file
