John Deere Z-Trak 777 and 797 (SN: 040001-) Max-Frame Mower Service Technical Manual (TM2077)

John Deere Z-Trak 777 and 797 (SN: 040001-) Max-Frame Mower Service Technical Manual (TM2077)

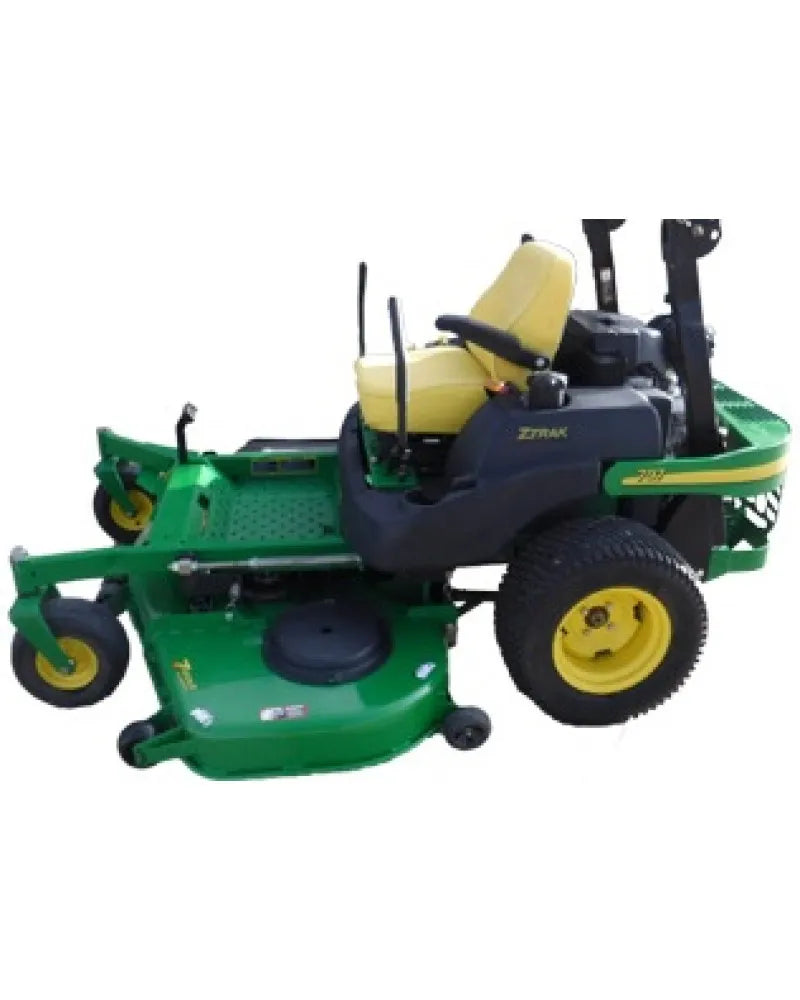

Illustrated factory Technical Manual for John Deere Max-Frame Mowers Models Z-Trak 777 and Z-Trak 797.

This manual will assist you in diagnosing, and repairing for your max-frame mower.
You can use a Windows, Mac, or Android device to view this manual. You only need to have a PDF reader installed.

Covered Models:
   Z-Trak 777 (SN: 040001-)
   Z-Trak 797 (SN: 040001-)
Table of Contents:
   Introduction
      Manual Description
   Safety
   Specifications and Information
      Table of Contents
      Specifications
      Repair Information
      Gasoline
      Oils and Lubricants
      Coolant Specifications
      Machine Identification
   Engine
      Table of Contents
      Specifications
      Tools and Materials
      Theory of Operation
      Diagnostics
      Tests and Adjustments
      Repair
   Electrical
      Table of Contents
      Specifications
      Theory and Diagnostic Information
      Electrical Schematic Information
      Schematic and Wiring Harness Legend
      Component Location
      Schematics and Harnesses
      Circuit Operation and Diagnosis
      Tests and Adjustments
      Repair
   Hydrostatic Power Train
      Table of Contents
      Specifications
      Component Location
      Theory of Operation
      Diagnostics
      Tests and Adjustments
      Repair
   Brakes
      Table of Contents
      Specifications
      Component Location and Operation
      Diagnostics
      Tests and Adjustments
      Repair
   Attachments
      Table of Contents
      Specifications
      Theory of Operation
      Diagnostics
      Tests and Adjustments
      Repair
      Repair (Optional Vertical MCS)
      Repair (Optional Horizontal MCS)
   Miscellaneous
      Table of Contents
      Specifications
      Repair
   Index

Format: PDF, 428 pages
Language: English
Publication Date: 01 Feb 2006
