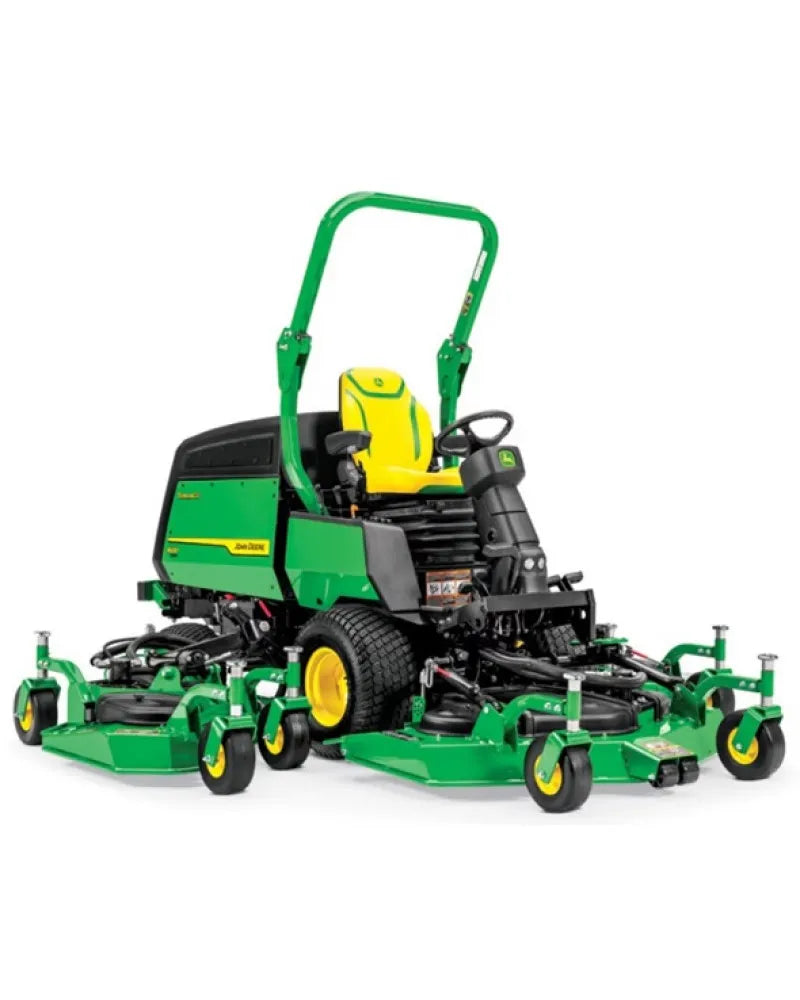

John Deere Series III Turbo 1600 Wide Area Mower (SN. from 405001) Service Technical Manual (TM147819)

John Deere Series III Turbo 1600 Wide Area Mower (SN. from 405001) Service Technical Manual (TM147819)

llustrated factory Technical Manual for John Deere Series III Turbo Wide Area Mowers Models 1600.

This manual will assist you in diagnosing, and repairing for your wide area mower.
You can use a Windows, Mac, or Android device to view this manual. You only need to have a PDF reader installed.

Covered Models:
   Series III Turbo 1600 (SN: 405001-)

Table of Contents:
   Introduction
      Foreword
   General Information
      Safety
      General Specifications
      Fuel and Lubricants
      Machine Specifications
   Engine Repair
      Engine
      Fuel and Air
      Cooling
   Electrical Repair
      Battery
      Wiring Harnesses
   Power Train Repair
      Power Train
   Hydraulics Repair
      Hydraulic Valves and Cylinders
      Hydraulic Pump
      Hydraulic Motors
      Hydraulic Reservoir and Oil Cooler
   Steering Repair
      Steering
   Brake Repair
      Brakes
   Attachments Repair
      Mower Deck
   Operator Station Repair
      Operator`s Station
   Miscellaneous Repair
      Miscellaneous
   Engine Operation, Tests, and Adjustments
      Theory of Operation
      Engine Diagnosis
      Fuel and Air Operation, Tests, and Adjustments
      Turbocharger Operation, Tests, and Adjustments
      Engine Tests and Adjustments
   Electrical Operation, Tests, and Adjustments
      Component Location
      Theory of Operation
      Diagnosis
      Connectors
      Schematics
      Tests and Adjustments
   Controllers Operation, Tests, and Adjustments
      Set Up, PDU
      Theory of Operation
      Diagnose-DTCs, ECU
      Diagnose-DTCs, VCU
      Tests and Adjustments
      DPF Functions and DTCs
   Power Train Operation, Tests, and Adjustments
      Component Location
      Theory of Operation
      Diagnosis
      Tests and Adjustments
   Hydraulics Operation, Tests, and Adjustments
      Component Location
      Theory of Operation
      Schematics
      Diagnosis
      Tests and Adjustments
   Steering Operation, Tests, and Adjustments
      Component Location
      Theory of Operation
      Diagnosis
      Tests and Adjustments
   Brake Operation, Tests, and Adjustments
      Component Location
      Theory of Operation
      Diagnosis
      Tests and Adjustments
   Attachments Operation, Tests, and Adjustments
      Component Location
      Diagnosis
      Tests and Adjustments
   Service Tools
      Tools and Kits

Format: PDF, 881 pages
Language: English
Publication Date: 16 May 2019
