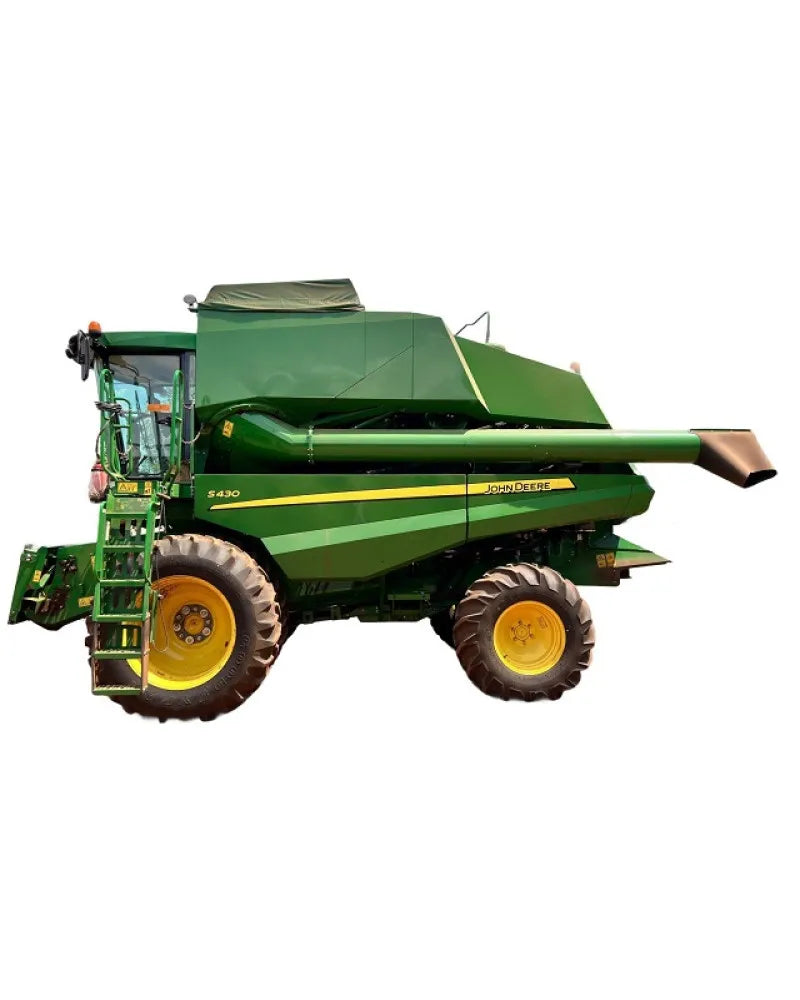

John Deere S430 and S440 Combines Service Repair Manual (TM805319)

John Deere S430 and S440 Combines Service Repair Manual (TM805319)

Illustrated factory Repair Manual for John Deere Combines Models S430 and S440.

This manual will assist you in assembling, disassembling, and repairing for your combine.
You can use a Windows, Mac, or Android device to view this manual. You only need to have a PDF reader installed.

Covered Models:
   S430
   S440
Table of Contents:
   Introduction
      Trademarks
      Foreword
   General
      Safety
      Specifications
      Tune-Up and Adjustment
   Engine
      Remove and Install Engine
      Cooling System
      Air Compressor and Reservoir
   Fuel and Air
      Air Intake System
      Diesel Fuel System
   Electrical System
      Battery
      Harness and Connector Repair
      Wire Harness Routing
      Control Units and Power Distribution
      Lighting
      Operators Station
      Sensors and Switches
      Wiper
      Alternator
      Starting Motor
      GreenStar Components
   Power Train
      Engine Power Take-Off and Belts
      Hydrostatic Transmission Drive Pump
      Hydrostatic Transmission Drive Motor
      Transmission and Differential-Three Speed Transmission
      Single Reduction Final Drive
      Cam Lobe Motor
      Tires and Wheels
   Steering and Brakes
      Steering
      Brakes
   Hydraulic System
      Hydraulic Reservoir
      Hydraulic Motors and Pumps
      Hydraulic Valves
      Hydraulic Cylinders
      Accumulators
   Machine Shields
      Feeder House Side Shields
      Gull Wing Doors
      Separator Inspection Covers
      Right-Hand Side Shields
      Left-Hand Side Shields
      Rear Vertical Door
      Rear Shields
      Engine Compartment Shields
   Feeder House
      Conveyor
      Top Shaft and Slip Clutch
      Feeder House Drives and Reverser Gear Case
      Feed Accelerator
   Separator
      Separator Drives
      Separator Repair
      Discharge Beater-Rice Version
   Residue Disposal
      Straw Chopper
      Straw Spreader
   Cleaning System
      Cleaning Fan
      Cleaning Shoes
   Grain Transport
      Tailings Elevator
      Grain Elevator
      Grain Loading Auger
   Grain Tank and Unloading System
      System Drives
      Cross Auger
      Unloading Auger
      Grain Tank Cover
   Operator Station
      Air Conditioning System (R134a)
      System Components
      Cab

Format: PDF, 1121 pages
Language: English
Publication Date: 28 Nov 2022
