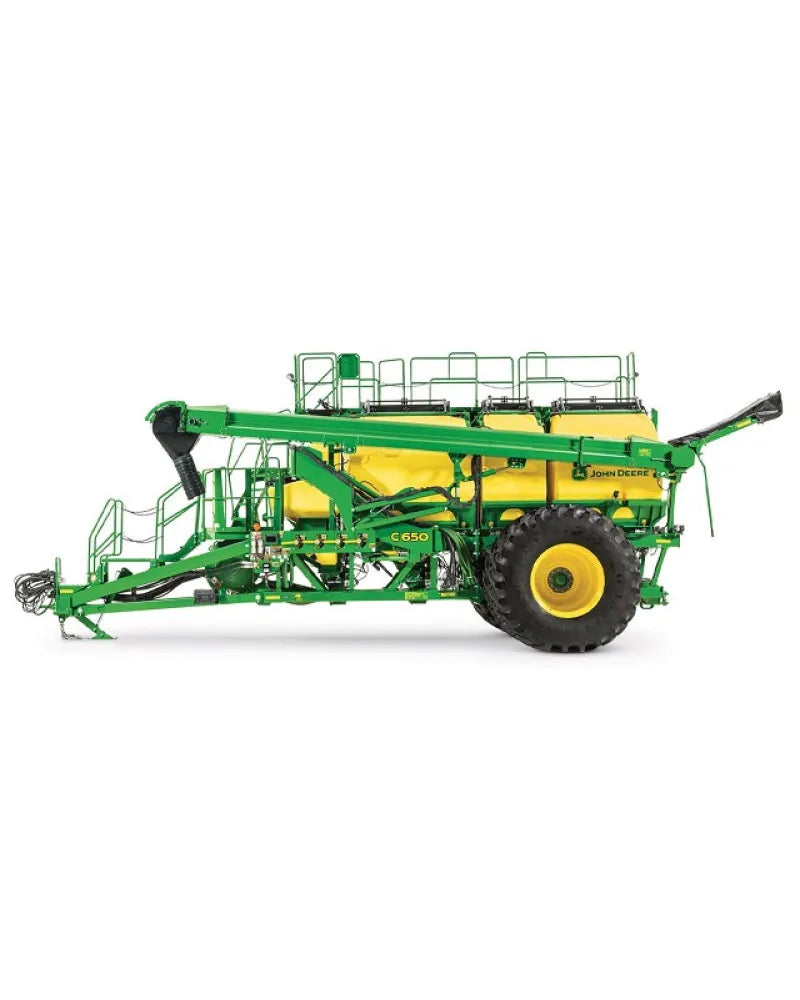

John Deere C650 Tow Between Commodity Air Carts Diagnostic Manual (TM152519)

John Deere C650 Tow Between Commodity Air Carts Diagnostic Manual (TM152519)

Illustrated factory Diagnostic Manual for John Deere Tow Between Commodity Air Carts Models C650.

This manual will assist you in diagnosing for your air cart.
You can use a Windows, Mac, or Android device to view this manual. You only need to have a PDF reader installed.

Covered Models:
   C650

Table of Contents:
   Introduction
      Foreword
   General Information
      Safety
      General References
      References for Technical Information
   Diagnostic Trouble Codes
      Air Cart Master Codes
      Tank Control Unit Codes
   Observable Symptom and System Diagnostics
      Calibrating Meters Observable Symptoms
      CAN Bus Observable Symptoms
      Cart Side Display Observable Symptoms
      Dual Blowers Observable Symptoms
      Lighting - Work Lights Observable Symptoms
      Lighting - Transport Lights (NA) Observable Symptoms
      Metering Observable Symptoms
      SectionCommand Observable Symptoms
      Seeding Rate Observable Symptoms
      Tank Fill Amber Lights Observable Symptoms
      Ultrasonic Bin Level Sensor Tank Level Observable Symptoms
      Wheel Speed Sensor Observable Symptoms
      Wireless Remote Observable Symptoms
      Air Cart Brake System Observable Symptoms
      Conveyance Observable Symptoms
      Jack Observable Symptoms
      Metering Drive Observable Symptoms
      Tank Pressure Observable Symptoms
   Electrical
      General Information
      Procedures
      Theory of Operation
      Schematic
      Diagnostic Tests and Adjustments
   Electronic Control Units
      General Information
      Programming Electronic Control Units
      Air Cart Master Control Software Addresses (CMC)
      Tank Control Unit Software Addresses (TCU)
      Reprogramming Air Seeder Controllers
   Electrical Component Information
      Electrical Assemblies
      Sensors
      Capacitors
      Lights
      Fuses
      Relays
      Switches
      Wiring Harnesses
      Interconnects and Ground Points
      Electronically Actuated Mechanical Devices
   Steering and Brakes
      Operational and Preliminary Checks
      Theory of Operation
      Schematic
      Diagnostic Tests and Adjustments
   Hydraulics
      General Information
      Operational and Preliminary Checks
      Theory of Operation
      Schematic
      Diagnostic Tests and Adjustments
   Hydraulics Component Information
      Accumulator
      Sensor or Gauge
      Cylinder, Actuator, or Piston
      Check Valve
      Filter
      Valve Block, Assembly, or Gearcase
      Motor
      Orifice
      Valve
      Mechanical Assembly
      Diagnostic Receptacle or Coupler
      Solenoid Valve
      Port With Plug
   Pneumatic Tank Pressure
      Test Manifold-Tank Pressure Differential
      Theory of Operation
      Schematic
      Diagnostic Tests and Adjustments
   Pneumatic Component Information
      Sensors or Gauges
      Pumps
      Reservoirs and Tanks
      Valve
      Mechanical Assemblies

Format: PDF, 1087 pages
Language: English
Publication Date: 29 Jul 2020
