John Deere 825, 845, 875, 885, 980, 985 Cultivator, 2810, 3710 Moldboard Plow, 400 Rotary Hoes, 510, 630, 635, 640, 650 Disk Ripper, 1650 Chisel Plow, 970 Harrow, 550 Mulch Master, 726 Mulch Finisher and 716 Mulch Tiller Service Technical Manual (TM1495)

John Deere 825, 845, 875, 885, 980, 985 Cultivator, 2810, 3710 Moldboard Plow, 400 Rotary Hoes, 510, 630, 635, 640, 650 Disk Ripper, 1650 Chisel Plow, 970 Harrow, 550 Mulch Master, 726 Mulch Finisher and 716 Mulch Tiller Service Technical Manual (TM1495)

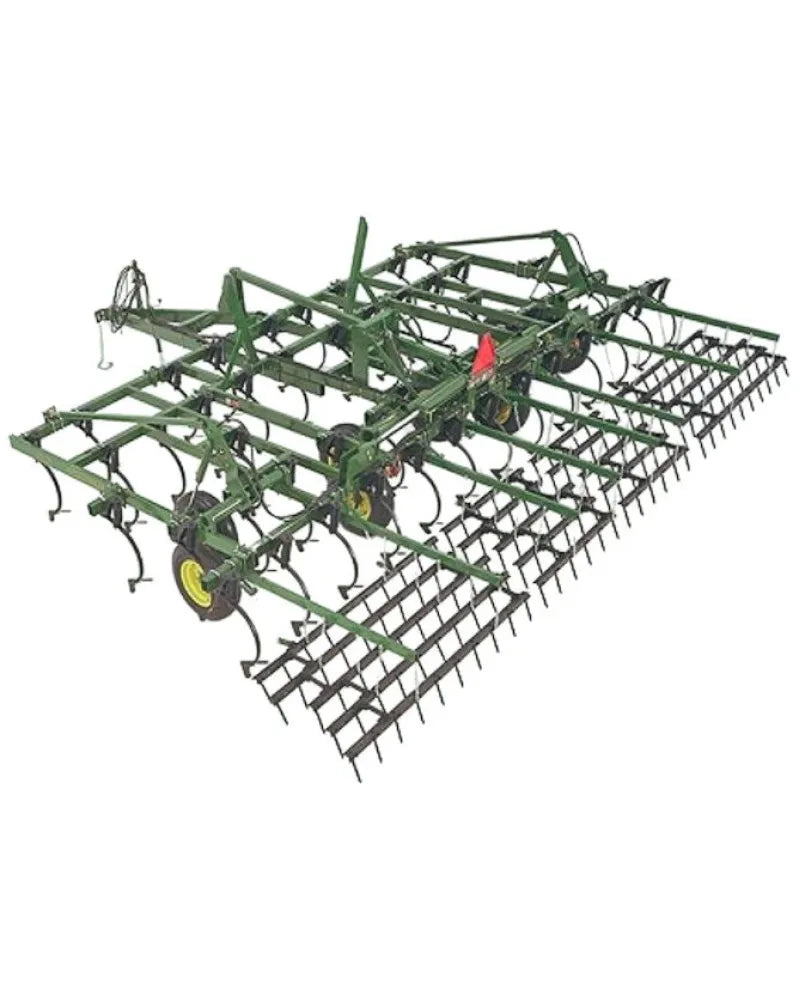

Illustrated factory Technical Manual for John Deere Field Cultivators Models 980, 985, Moldboard Plows Models 2810, 3710, Rotary Hoes Models 400, Disk Rippers Models 510, 630, 635, 640, 650, Chisel Plows Models 1650, Row-Crop Cultivators Models 825, 845, 875, 885, Harrows Models 970, Mulch Masters Models 550, Mulch Finishers Models 726 and Mulch Tillers Models 716.

This manual will assist you in diagnosing, and repairing for your field cultivator, moldboard plow, rotary hoe, disk ripper, chisel plow, row-crop cultivator, harrow, mulch master, mulch finisher or mulch tiller.
You can use a Windows, Mac, or Android device to view this manual. You only need to have a PDF reader installed.

Covered Models:
   980 Field Cultivator
   985 Field Cultivator
   2810 Moldboard Plow
   3710 Moldboard Plow
   400 Rotary Hoe
   510 Disk Ripper
   630 Disk Ripper
   635 Disk Ripper
   640 Disk Ripper
   650 Disk Ripper
   1650 Chisel Plow
   825 Row-Crop Cultivator
   845 Row-Crop Cultivator
   875 Row-Crop Cultivator
   885 Row-Crop Cultivator
   970 Harrow
   550 Mulch Master
   726 Mulch Finisher
   716 Mulch Tiller

Table of Contents:
   INTRODUCTION AND SAFETY
      Introduction Information
      Safety
      Lubricants
   SPECIFICATIONS
      Product Identification Numbers
      Gang Numbers
      Machine Specifications
      2810/3710 Moldboard Plow Specifications
      Hydraulic Cylinder Specifications
      Torque Values
   FRAME AND ROCKSHAFT REPAIR
      Repair and Welding
      Maintenance Free Bearings
      Rockshaft Bearing Repair
      Rockshaft Straightening
   STANDARD REPAIR
      Spring-Reset Standards
      Standards
      S-Tine Standard and Ground Tools
      Plow Standards-2810 and 3710
   WHEELS AND AXLES
      Conventional and Tandem Hubs
      Hub with Spindle Bolt
      Tires
   DISKS GANGS AND MIDDLEBREAKER
      Disk Gangs
      Middlebreaker
   ROLLER HARROWS,ROTARY HOES AND INCORPORATOR WHEELS
      Roller Harrows
      Rotary Hoes
      Incorporator Wheels
   ELECTRICAL SYSTEM
      Typical Warning Lamp System
      Connector Repair
   HYDRAULIC SYSTEM REPAIR
      Wyr-Loc Cylinder
      580 Series Cylinder
      Tie Rod Cylinders
      Single-Point Valve
      EHDC Troubleshooting
      Valves
      Wing Control Valve
      Hydraulic Leveling Motor
      Double Pivot Hitch Steering Control
   Operation and Testing
      Disk Gang Leveling, 630,635,640,650
      Electrical System
      Hydraulic System Operation
      Hydraulic System Diagnosis
   Fabricated Tool Section
      GENERAL
   Index

Format: PDF, 512 pages
Language: English
Publication Date: 10 Jan 1995
