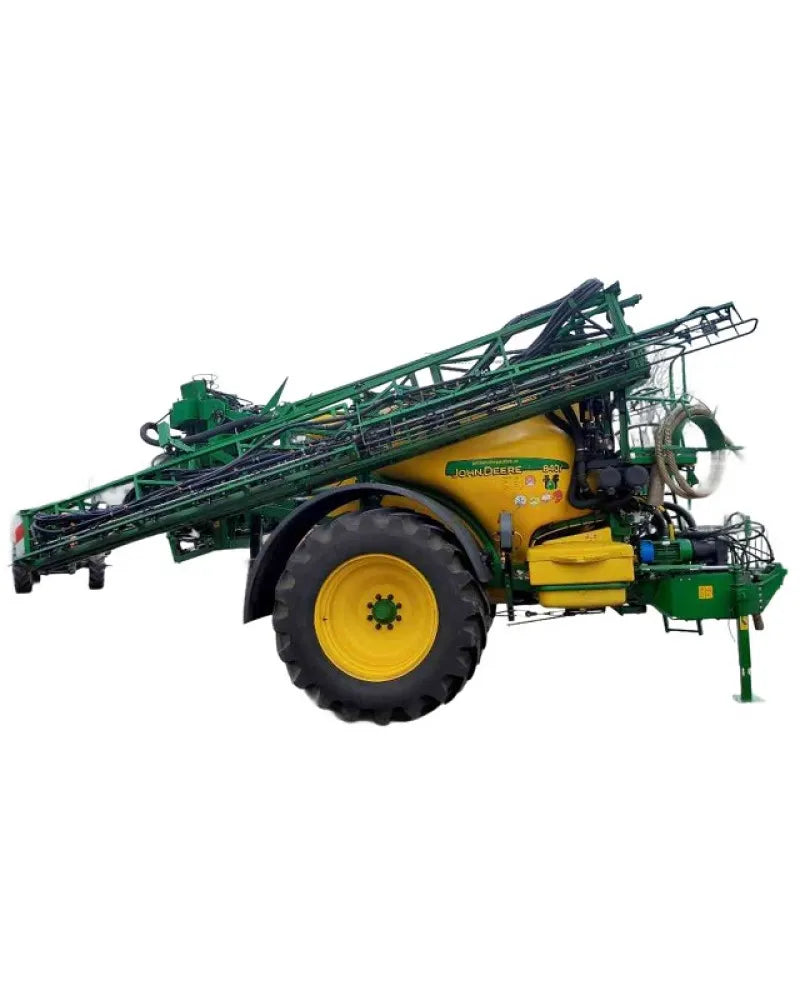

John Deere 824, 832 and 840 Trailed Crop Sprayer (European Edition) Service Technical Manual (TM4782)

Illustrated factory Technical Manual for John Deere Trailed Crop Sprayers Models 824, 832 and 840.

This manual will assist you in diagnosing, and repairing for your trailed crop sprayer.
You can use a Windows, Mac, or Android device to view this manual. You only need to have a PDF reader installed.

Covered Models (European Edition):
   824
   832
   840

Table of Contents:
   Introduction
      Foreword
   Safety
      Safety Information
   General Information
      Description of the Machine
      Torques for Hardware
      Specifications
   Electrical System
      Connector Repair
      Electrical Control
      Troubleshooting (General)
      Troubleshooting - EL4 Control Unit
      Troubleshooting - ELC-1/EHC-2 Control Units
      GreenStar Programming and Info
      GreenStar Caution and Warning Statements
   Power Train
      Compressor
      Gearbox
   Brake System
      Hydraulic Brake System
      Pneumatic Brake System
   Hydraulic System
      Hydraulic Functions
      Hydraulic Cylinders
      Control Valves
      Accumulator
      Sensors
      Adjustments
      Hydraulic Diagrams
   Miscellaneous
      Welding and Repair
      Function Diagrams
      Sprayboom
      Sprayboom Adjustments
      Center Frame
      Track Width Adjustment
      Axle
      Drawbar Adjustments
      Drawbar
      Parallelogram
   Tank and Accessories
      Spraying Liquid Tank
      Rinse Tank
   Pump
      Pump
   Lines and Valves
      Sprayline
   Activation Systems
      Sensors
      Boom Tilt Cylinder
      Ball Valves
      Regulating Unit
      Air Pressure Regulating Unit
   Spray Nozzles
      Spray Nozzles
   VRS
      Distributor Tube

Format: PDF, 460 pages
Language: English
Publication Date: 11 Nov 2002
