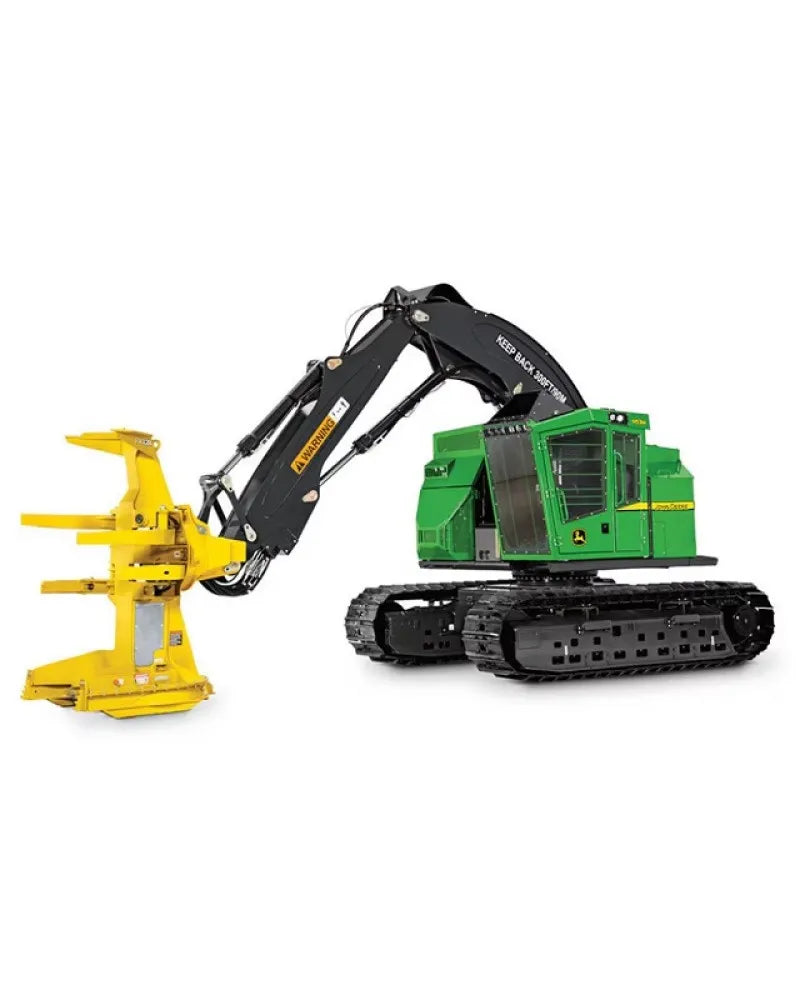

John Deere 803M and 853M Tracked Feller Bunchers (Closed Loop Hydrostatic Drive) Operation and Test Manual (TM14085X19)

John Deere 803M and 853M Tracked Feller Bunchers (Closed Loop Hydrostatic Drive) Operation and Test Manual (TM14085X19)

Illustrated factory Operation and Test Manual for John Deere Tracked Feller Bunchers with Closed Loop Hydrostatic Drive Models 803M and 853M.

This manual will assist you in diagnosing, and troubleshooting for your tracked feller buncher.
You can use a Windows, Mac, or Android device to view this manual. You only need to have a PDF reader installed.

Covered Models (Closed Loop Hydrostatic Drive):
   803M (PIN: 1T0803MX_ _ F293917-409162; 1T0803MX_ _ L343918-409162)
   853M (PIN: 1T0853MX_ _ F293917-409162; 1T0853MX_ _ L343918-409162)

Table of Contents:
   Introduction
      Foreword
      Manual Identification - READ THIS FIRST!
   General Information
      Safety
   Diagnostic Trouble Codes (DTCs)
      Engine Control Unit (ECU) Diagnostic Trouble Codes
      Head Control Unit (HCU) Diagnostic Trouble Codes
      Hydraulic Motor Controller (HMC) Diagnostic Trouble Codes
      Hydraulic Pump Controller (HPC) Diagnostic Trouble Codes
      Left Armrest Controller (ACL) Diagnostic Trouble Codes
      Right Armrest Controller (ACR) Diagnostic Trouble Codes
      Sealed Switch Module (SSM) Diagnostic Trouble Codes
      Vehicle Control Unit (VCU) Diagnostic Trouble Codes
      Primary Display Unit (PDU) Diagnostic Trouble Codes
   Operational Checkout Procedure
      Operational Checkout Procedure
   Engine
      Theory of Operation
      System Diagrams
      Diagnostic Information
      Adjustments
      Tests
   Electrical System
      Theory of Operation
      System Diagrams
      Diagnostic Information
      Monitor Operation
      Diagnostic Test Box
      Tests
   Power Train
      Theory of Operation
      Diagnostic Information
   Hydraulic System
      Theory of Operation
      System Diagrams
      Diagnostic Information
      Tests
   Hydrostatic System
      Theory of Operation
      System Diagrams
      Diagnostic Information
      Tests
   Miscellaneous
      Theory of Operation
      System Diagrams
   Heating and Air Conditioning
      Theory of Operation
      System Diagrams
      Diagnostic Information
      Tests
   APPENDIX
      Section 9000
      Section 9001
      Section 9005
      Section 9010
      Section 9015
      Section 9020
      Section 9025
      Section 9026
      Section 9030
      Section 9031

Format: PDF, 1266 pages
Language: English
Publication Date: 09 Jun 2022
