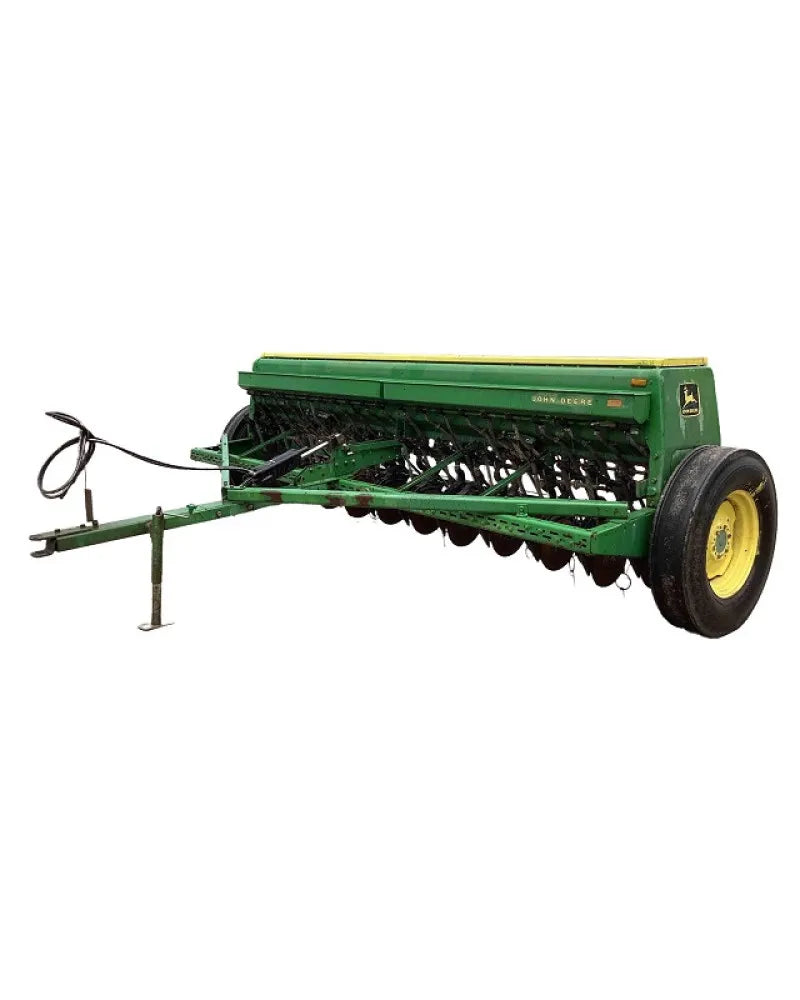

John Deere 8000 Grain Drills Service Technical Manual (TM1131)

John Deere 8000 Grain Drills Service Technical Manual (TM1131)

Illustrated factory Technical Manual for John Deere Grain Drills Models 8000.

This manual will assist you in diagnosing, and repairing for your grain drill.
You can use a Windows, Mac, or Android device to view this manual. You only need to have a PDF reader installed.

Covered Models:
   8000

Table of Contents:
   Introduction
   Safety and You
   General Information
      Description
      Lubrication
   DIAGNOSING MALFUNCTIONS AND TESTING
   END WHEELS
      General information
      Axle and Axle Plate Disassembly
      Assembly
   PLAIN GRAIN FLUTED-FEED DRIVE
      General Information
      Drive Shaft Bearings-Replacement
      Drive Tube And Sprocket Assembly- Replacement
      Clutch-Replacement
      Feed Shaft Bearing-Removal and Installation
      Fluted-Feed Shifter-Removal
   GRAIN AND FERTILIZER FLUTED-FEED DRIVE
      General Information
      Drive Shaft Bearings-Replacement
      Drive Tube and Sprocket Assembly- Replacement
      Clutch-Replacement
      Countershaft Bearings-Replacement
      Feed Shaft Bearing-Replacement
      Fertilizer Feed Shaft Bearing- Replacement
      Fertilizer Gear Case-Disassembly and Assembly
      Traction Feed Fertilizer Wheels and Bearings-Replacement
   PLAIN GRAIN DOUBLE-RUN-FEED DRIVE
      General Information
      Drive Shaft Bearings-Replacement
      Drive Tube and Sprocket Assembly- Replacement
      Clutch-Replacement
      Countershaft Bearings-Replacement
      Feed Shaft Bearing-Replacement
   GRAIN AND FERTILIZER DOUBLE-RUN-FEED DRIVE
      General Information
      Drive Shaft Bearings-Replacement.
      Drive Tube and Sprocket Assembly- Replacement
      Clutch-Replacement
      Countershaft Bearings-Replacement
      Feed Shaft Bearing-Replacement
      Fertilizer Feed Shaft Bearing- Replacement
      Fertilizer Gear Case-Disassembly and Assembly
      Traction-Feed Fertilizer Wheels and Bearings-Replacement
   FEED CUPS
   FURROW OPENERS
   PRESS WHEELS
   GRASS SEED ATTACHMENT
   REAR MOUNTED ROW MARKER ATTACHMENT SELECTOR VALVE
   SPECIFICATIONS
   SPECIAL TOOLS

Format: PDF, 62 pages
Language: English
