John Deere 7500, 7700, 8500, 8700, 8800 Lightweight Fairway Mower, 7500E and 8500E Cut Hybrid Service Technical Manual (TM107919)

John Deere 7500, 7700, 8500, 8700, 8800 Lightweight Fairway Mower, 7500E and 8500E Cut Hybrid Service Technical Manual (TM107919)

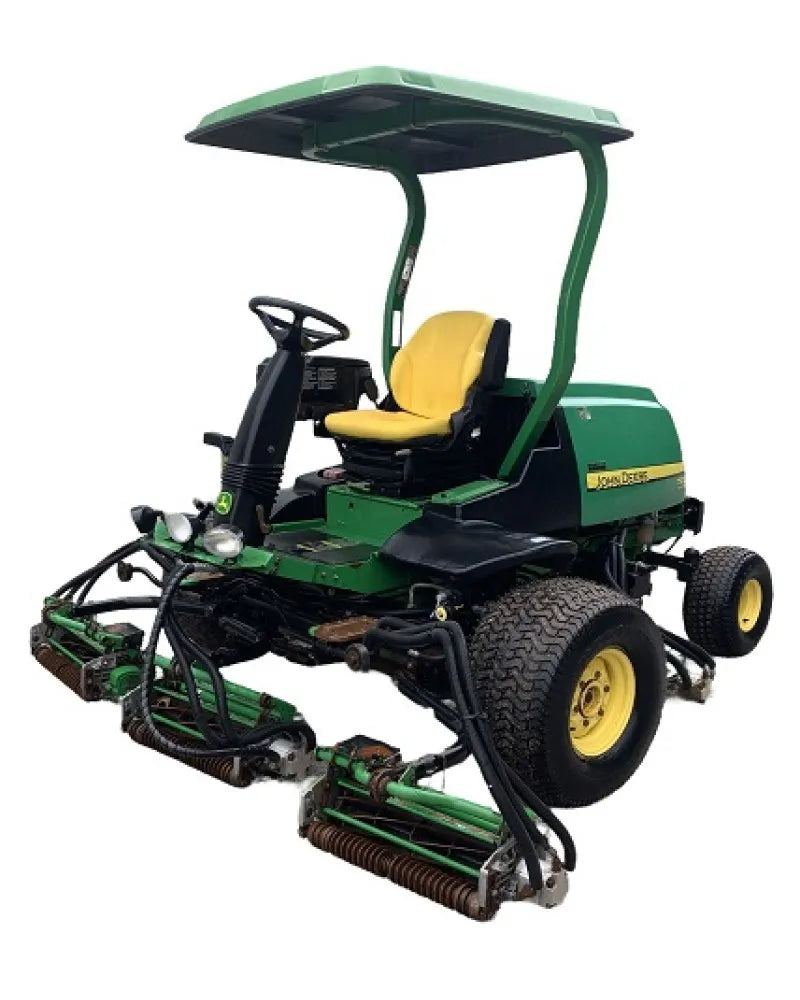

Illustrated factory Technical Manual for John Deere Lightweight Fairway Mowers Models 7500, 7700, 8500, 8700, 8800, Cut Hybrids Models 7500E and 8500E.

This manual will assist you in diagnosing, and repairing for your lightweight fairway mower or cut hybrid.
You can use a Windows, Mac, or Android device to view this manual. You only need to have a PDF reader installed.

Covered Models:
   7500 Lightweight Fairway Mower (SN: 020001-)
   7700 Lightweight Fairway Mower (SN: 020001-)
   8500 Lightweight Fairway Mower (SN: 020001-)
   8700 Lightweight Fairway Mower (SN: 020001-)
   8800 Lightweight Fairway Mower (SN: 020001-)
   7500E Cut Hybrid (SN: 010001-)
   8500E Cut Hybrid (SN: 010001-)

Table of Contents:
   Introduction
      Manual Description
   Safety
   Specifications and Information
      Table of Contents
      Specifications
      General Information
      Identification Numbers
   Engine - Diesel
      Table of Contents
      Specifications
      Tools and Materials
      Component Location
      Theory of Operation
      Diagnostics
      Tests and Adjustments
      Repair
   Electrical
      Table of Contents
      Specifications
      General Information
      Tools and Materials
      Component Location
      Schematics and Harnesses
      Operation and Diagnostics
      Tests and Adjustments
      Repair
   Electrical 7500E/8500E
      Table of Contents
      Specifications
      Tools and Materials
      General Information
      Component Location
      Schematics and Harnesses
      Operation and Diagnostics
      Electronic Controllers
      RMC and Motor Diagnostics
      Tests and Adjustments
      Repair
   Hydrostatic Power Train
      Table of Contents
      Specifications
      Tools and Materials
      Component Location
      Hydrostatic Schematics
      Theory of Operation
      Diagnostics
      Tests and Adjustments
      Repair
   Hydraulics
      Table of Contents
      Specifications
      Tools and Materials
      Component Location
      Schematics and Harnesses
      Operation and Diagnostics
      Tests and Adjustments
      Repair
   Steering
      Table of Contents
      Specifications
      Tools and Materials
      Component Location
      Theory of Operation
      Diagnostics
      Tests and Adjustments
      Repair
   Brakes
      Table of Contents
      Specifications
      Theory of Operation
      Diagnostics
      Tests and Adjustments
      Repair
   Attachments
      Table of Contents
      Specifications
      Tools and Materials
      Component Location
      Theory of Operation
      Diagnostics - Reel Mowers
      Diagnostics - Rotary Mowers
      Tests and Adjustments
      Repair - Reel Units
      Repair - Rotary Decks
   INDEX
      Numerics

Format: PDF, 672 pages
Language: English
Publication Date: 01 Dec 2008
