John Deere 7460 (SN. from 027001) Cotton Strippers Diagnostic Manual (TM106619)

John Deere 7460 (SN. from 027001) Cotton Strippers Diagnostic Manual (TM106619)

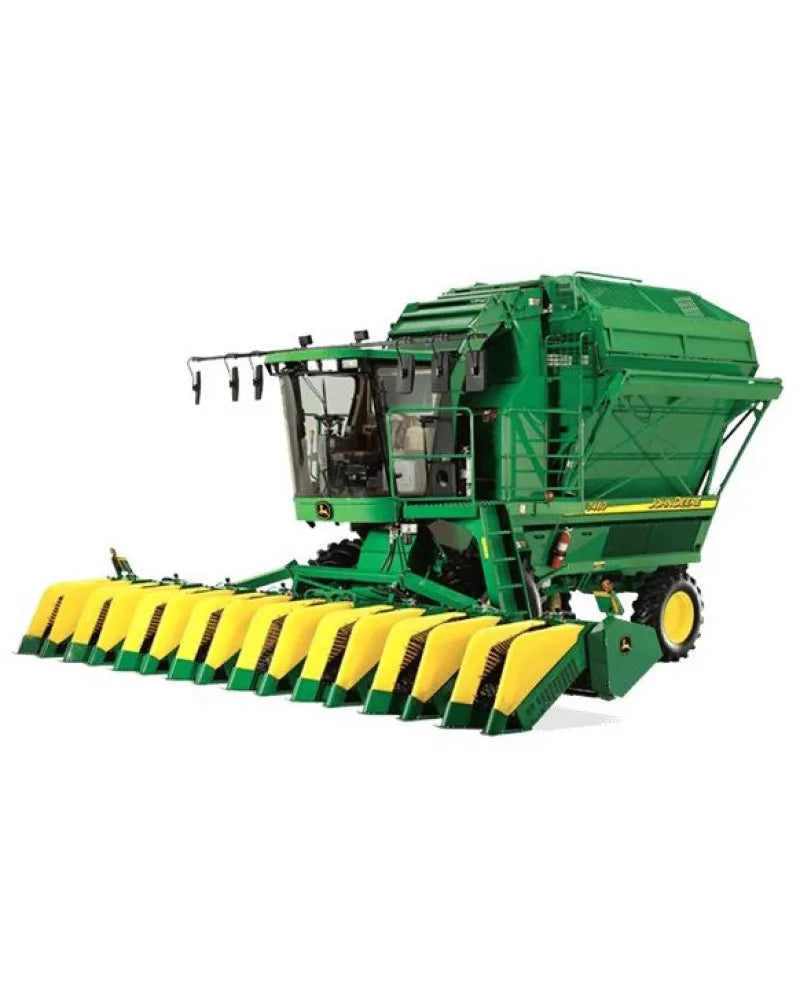

Illustrated factory Diagnostic Manual for John Deere Cotton Strippers Models 7460.

This manual will assist you in diagnosing for your cotton stripper.
You can use a Windows, Mac, or Android device to view this manual. You only need to have a PDF reader installed.

Covered Models:
   7460 (SN: 027001-)
Table of Contents:
   Introduction
      Foreword
   General Information
      Safety
      General Specifications
      Diagnostic and Testing Procedures
   Diagnostic Trouble Codes
      CCU Diagnostic Trouble Codes
      Engine Diagnostic Trouble Codes
      Header Height Diagnostic Trouble Codes
      Row-Trak Diagnostic Trouble Codes
      Calibration Error Codes
   Observable Symptoms
      Engine Diagnosis and Test
      Fuel and Air Diagnosis and Test
      Electrical Diagnosis and Test
      Power Train Diagnosis and Test
      Brake Systems Diagnosis and Test
      Hydraulic System Diagnosis and Test
      Steering System Diagnosis and Test
      Operator Station Diagnosis and Test
      Stripping Units Diagnosis and Test
      Air System Diagnosis and Test
      Cleaner Diagnosis and Test
   Engine Diagnosis and Test
      General Information
      Test Procedures and Adjustments
      Engine Diagnostics
      Component Location
   Fuel and Air Diagnosis and Test
      General Information
      Test Procedures and Adjustments
      Air Intake System Diagnostics
      Fuel System Diagnostics
      Component Location
   Electrical System Diagnosis and Test
      General Information
      Fuse, Diode, and Relay Information
      Harness Wire Color Information
      Row-Trak Calibration Procedures
      Header Height Control Calibration Procedures
      Air Conditioning and Heater Diagnostics
      Air Seat Diagnostics
      Auxiliary Power Outlet Diagnostics
      Backup Alarm Diagnostics
      Basket Compactor Diagnostics
      Basket Compactor Monitor Diagnostics
      Basket Full Monitor Diagnostics
      Basket Raise-Lower Diagnostics
      Basket Vane Diagnostics
      CAN Bus Diagnostics
      Caution, Stop Light, and Horn Diagnostics
      CCD Bus Diagnostics
      Charging Diagnostics
      Cleaner Engage Diagnostics
      Cleaner Monitor Diagnostics
      Cleaner Saw Oiler Diagnostics
      Dome and Console Light Diagnostics
      Duct Vacuum Monitor Diagnostics
      Engine Air Filter Monitor Diagnostics
      Engine Coolant Temperature Monitor Diagnostics
      Engine Oil Pressure Monitor Diagnostics
      Engine Running Power Diagnostics
      Engine Sensors Diagnostics
      Engine Throttle Control Diagnostics
      Fan Engage Diagnostics
      Fan Speed Monitor Diagnostics
      Fuel Level Low Monitor Diagnostics
      Fuel Shutoff Diagnostics
      Gauges Diagnostics
      Header Raise-Lower Diagnostics
      Header Speed Monitor Diagnostics
      Height Sensing Controller Diagnostics
      Height Sensing Diagnostics
      Horn Diagnostics
      Hydraulic Oil Filter Monitor Diagnostics
      Hydraulic Oil Temperature Monitor Diagnostics
      Lighting System - Basket and Service Lights Diagnostics
      Lighting System - Field and Header Lights Diagnostics
      Lighting System - Hazard Lights Diagnostics
      Lighting System - Road and Tail Lights Diagnostics
      Lighting System - Warning and Turn Signal Lights Diagnostics
      Normal Light Monitor Diagnostics
      Park Brake Monitor Diagnostics
      Power System Diagnostics
      Radio Diagnostics
      Row Unit Speed Monitor Diagnostics
      Row Units Raise-Lower Diagnostics
      RowTrak Diagnostics
      RowTrak Monitor Diagnostics
      Shaft Speed Monitor Diagnostics
      Start Aid Diagnostics
      Starting Diagnostics
      Tachometer Diagnostics
      Units Engage Diagnostics
      Units Stop Diagnostics
      Voltage Monitor Diagnostics
      Overhead Alarm Module Assembly Diagnostics
      Wiper Diagnostics
      Connector Locations
   Power Train Diagnosis and Test
      General Information
      Test Procedures and Adjustments
      Hydrostatic Diagnostics
      Component Location
   Brake System Diagnosis and Test
      General Information
      Test Procedures and Adjustments
      Service Brake System
      Park Brake System
      Component Location
   Hydraulic System Diagnosis and Test
      General Information
      Test Procedures and Adjustments
      Axle Stabilizer Diagnostics
      Basket Compactor System Diagnostics
      Basket Raise-Lower System Diagnostics
      Basket Vane System Diagnostics
      Header Float System Diagnostics
      Header Raise-Lower System Diagnostics
      Hydraulic Pressure Dump Valve
      Hydraulic System Overheating Diagnostics
      Row Unit Raise-Lower System Diagnostics
      Unit Engage System Diagnostics
      Component Location
   Steering System Diagnosis and Test
      General Information
      Test Procedures and Adjustments
      RowTrakRowTrak is a trademark of Deere & Company Steering Diagnostics
      Steering Diagnostics
      Component Location
   Operator Station Diagnosis and Test
      General Information
      Test Procedures and Adjustments
      Air Conditioning and Heating Diagnostics
      Component Location
   Stripping Units Diagnosis and Test
      General Information
      Stripping Unit Adjustments
      Stripping Unit Diagnostics
   Air System Diagnosis and Test
      General Information
      Air System Adjustments
      Air System Diagnostics
   Cleaner Diagnosis and Test
      General Information
      Cleaner Adjustments
      Cleaner Operation
      Component Location

Format: PDF, 695 pages
Language: English
Publication Date: 02 Nov 2015
