John Deere 640L Skidder, 648L and 748L Grapple Skidder (SN. F666893—690813) Service Repair Manual (TM13134X19)

John Deere 640L Skidder, 648L and 748L Grapple Skidder (SN. F666893—690813) Service Repair Manual (TM13134X19)

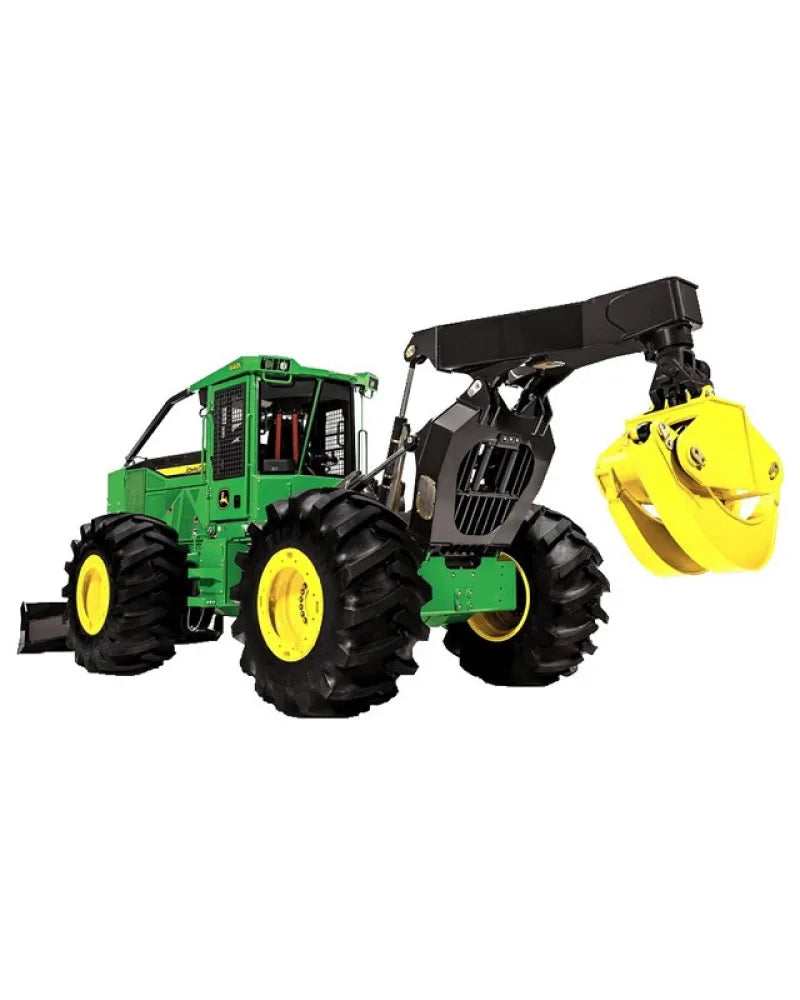

Illustrated factory Repair Manual for John Deere Skidders Models 640L, Grapple Skidders Models 648L and 748L.

This manual will assist you in assembling, disassembling, and repairing for your skidder or grapple skidder.
You can use a Windows, Mac, or Android device to view this manual. You only need to have a PDF reader installed.

Covered Models:
   640L Skidder (PIN: 1DW640L_ _ _ F666893-690813)
   648L Grapple Skidder (PIN: 1DW648L_ _ _ F666893-690813)
   748L Grapple Skidder (PIN: 1DW748L_ _ _ F666893-690813)

Table of Contents:
   Introduction
      Foreword
      Manual Identification - READ THIS FIRST!
   General Information
      Safety
      Torque Values
   Wheels
      Powered Wheels and Fastenings
   Axles and Suspension Systems
      Removal and Installation
      Input Drive Shafts and U-Joints
      Hydraulic System
   Transmission
      Removal and Installation
      Controls
      Input Drive Shafts and U-Joints
   Engine
      Removal and Installation
   Engine Auxiliary System
      Cold Weather Starting Aids
      Cooling Systems
      Intake System
      Exhaust Systems
      External Fuel Supply Systems
   Damper Drive
      Elements
   Steering System
      Secondary Steering
      Hydraulic System
   Service Brakes
      Active Elements
      Hydraulic System
   Park Brake
      Remove and Installation
      Hydraulic System
   Electrical System
      Removal and Installation
   Frame, Chassis, or Supporting Structures
      Frame Installation
      Frame Bottom Guards
   Operator`s Station
      Removal and Installation
      Operator Enclosure
      Pedal Assembly
      Seat and Seat Belt
      Heating and Air Conditioning
   Sheet Metal and Styling
      Hood or Engine Enclosure
   Safety and Convenience
      Pressurized Water System
   Main Hydraulic System
      Hydraulic System
   Winch
      Removal and Installation
      Control Valve
      Input Drive Shafts and U-Joints
      Drive and Clutch
   Stacking Blades
      Blades
      Hydraulic System
   Arch or Boom
      Frames
   Grapple
      Grapple Mechanism
      Frames
      Hydraulic System
   Dealer Fabricated Tools
      Dealer Fabricated Tools

Format: PDF, 414 pages
Language: English
Publication Date: 14 Sep 2020
