John Deere 620G, 620GP, 622G and 622GP Motor Grader (SN. from F680878, L700954) Operation and Test Manual (TM14240X19)

John Deere 620G, 620GP, 622G and 622GP Motor Grader (SN. from F680878, L700954) Operation and Test Manual (TM14240X19)

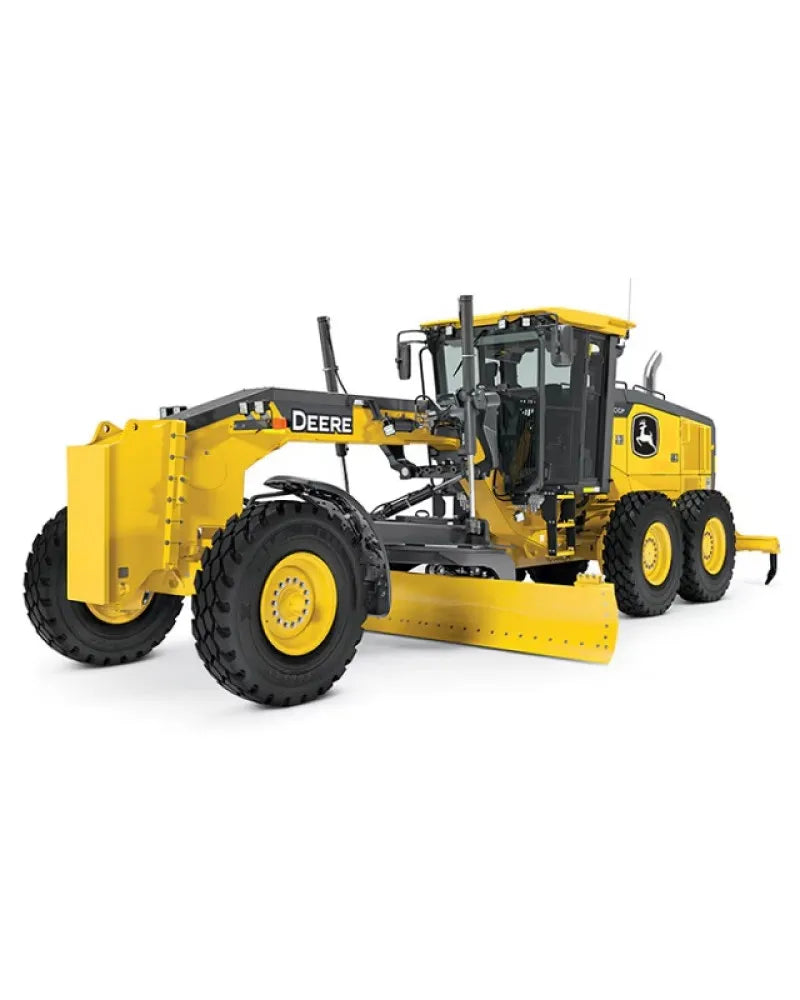

Illustrated factory Operation and Test Manual for John Deere Motor Graders Models 620G, 620GP, 622G and 622GP.

This manual will assist you in diagnosing, and troubleshooting for your motor grader.
You can use a Windows, Mac, or Android device to view this manual. You only need to have a PDF reader installed.

Covered Models:
   620G (PIN: 1DW620GX_ _ F680878-; 1DW620GX_ _ L700954-)
   620GP (PIN: 1DW620GP_ _ F680878-; 1DW620GP_ _ L700954-)
   622G (PIN: 1DW622GX_ _ F680878-; 1DW622GX_ _ L700954-)
   622GP (PIN: 1DW622GP_ _ F680878-; 1DW622GP_ _ L700954-)

Table of Contents:
   Introduction
      Foreword
      Manual Identification - READ THIS FIRST!
   General Information
      Safety
   Diagnostics
      Transmission Control Unit (TCU) Diagnostic Trouble Codes
      Engine Control Unit (ECU) Diagnostic Trouble Codes
      Primary Display Unit (PDU) Diagnostic Trouble Codes
      Vehicle Control Unit (VCU) Diagnostic Trouble Codes
      Hydraulic Valve Controller (HVC) Diagnostic Trouble Codes
      Auxiliary Valve Controller (AVC) Diagnostic Trouble Codes
      Switch Module 1 (SM1) Diagnostic Trouble Codes
      Six-Wheel Drive (6WD) Diagnostic Trouble Codes
      Cab Video Display (VC1) Diagnostic Trouble Codes
      Gear Selector Module (GSM) Diagnostic Trouble Codes
      Left Pod Joystick Control (LJ3) Diagnostic Trouble Codes
      Right Electrohydraulic (EH) Dual Joystick Control (JR1) Diagnostic Trouble Codes
      Left Electrohydraulic (EH) Dual Joystick Control (JL1) Diagnostic Trouble Codes
   Operational Checkout Procedure
      Operational Checkout Procedure
   Engine
      Theory of Operation
      System Diagrams
      Diagnostic Information
      Adjustments
      Tests
   Electrical System
      Theory of Operation
      System Diagrams
      Electrical Component Diagnostic Information
      Diagnostic Information
      Monitor Operation
      Diagnostic Test Box
      Adjustments
      Tests
   Six-Wheel Drive (6WD)
      Theory of Operation
      System Diagrams
      Diagnostic Information
      Adjustments
      Tests
   Power Train
      Theory of Operation
      System Diagrams
      Diagnostic Information
      Tests
   Hydraulic System
      Theory of Operation
      System Diagrams
      Diagnostic Information
      Tests
   Heating and Air Conditioning
      Theory of Operation
      System Diagrams
      Diagnostic Information
      Tests
   APPENDIX
      Section 9000
      Section 9001
      Section 9005
      Section 9010
      Section 9015
      Section 9016
      Section 9020
      Section 9025
      Section 9031

Format: PDF, 1661 pages
Language: English
Publication Date: 30 Dec 2022
