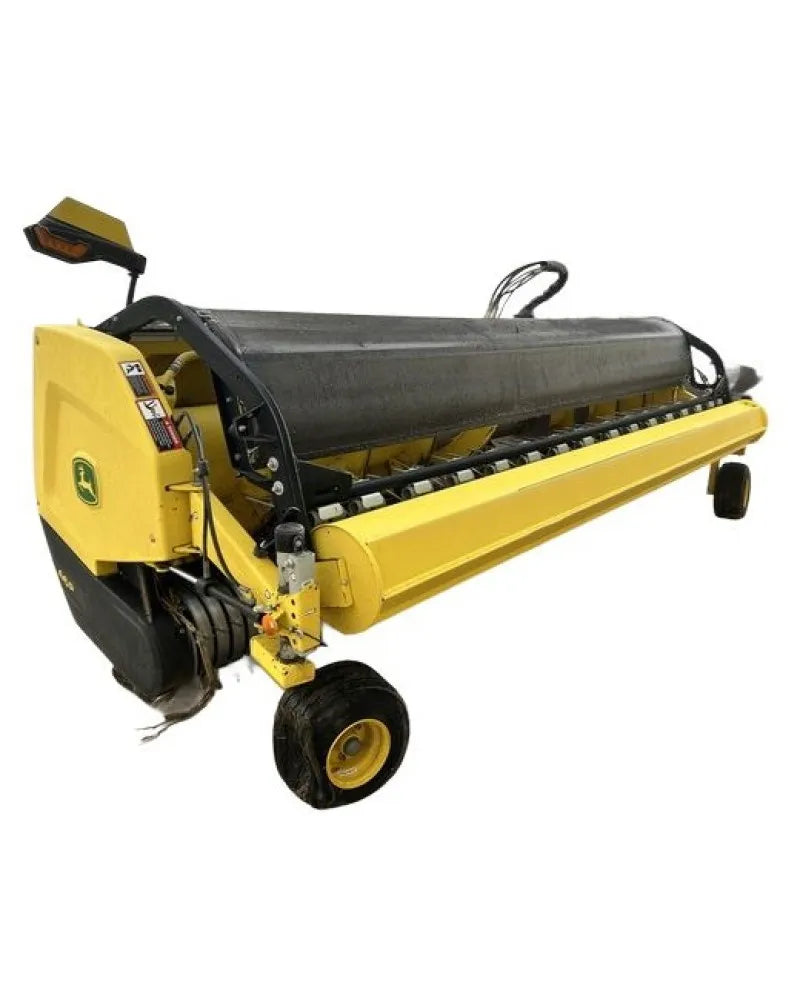

John Deere 30R, 35R and 46R Windrow Pickups Service Technical Manual (TM415219)

John Deere 30R, 35R and 46R Windrow Pickups Service Technical Manual (TM415219)

Illustrated factory Technical Manual for John Deere Windrow Pickups Models 30R, 35R and 46R.

This manual will assist you in diagnosing, and repairing for your windrow pickup.
You can use a Windows, Mac, or Android device to view this manual. You only need to have a PDF reader installed.

Covered Models:
   30R
   35R
   46R

Table of Contents:
   Introduction
      Foreword
      Version Date
      Trademarks
   Safety
      Safety Information
   General
      Identification View and Description
      Lubricants, Grease and Gear Oil
      Torques
      Capacities
      Specifications
   Electrical System-Repair
      Components
      Harness and Connector Repair
   Power Train
      Auger Drive Gear Case
      Angle Drive
      Pickup Drum Gear Case
      Hydraulic Drive
      Cam Clutch
   Hydraulic System
      Cylinders
      Motors
      Multicoupler
      Valves Blocks
      Hydraulic Pressure Accumulators
   Miscellaneous
      Windrow Compressor Roll
      Gauge Wheels
      Automatic Driveline Coupler
   Feed System
      Pickup Drum
      Pickup Feed Auger
   Electrical System-Diagnostics
      Schematics
   Hydraulic System
      Schematics

Format: PDF, 146 pages
Language: English
Publication Date: 08 Dec 2022
