John Deere 2113, 2115, 2117, 2122, 2126, 2130 and 2134 (SN. from 140100) Planters (South America) Diagnostic Manual (TM809419)

John Deere 2113, 2115, 2117, 2122, 2126, 2130 and 2134 (SN. from 140100) Planters (South America) Diagnostic Manual (TM809419)

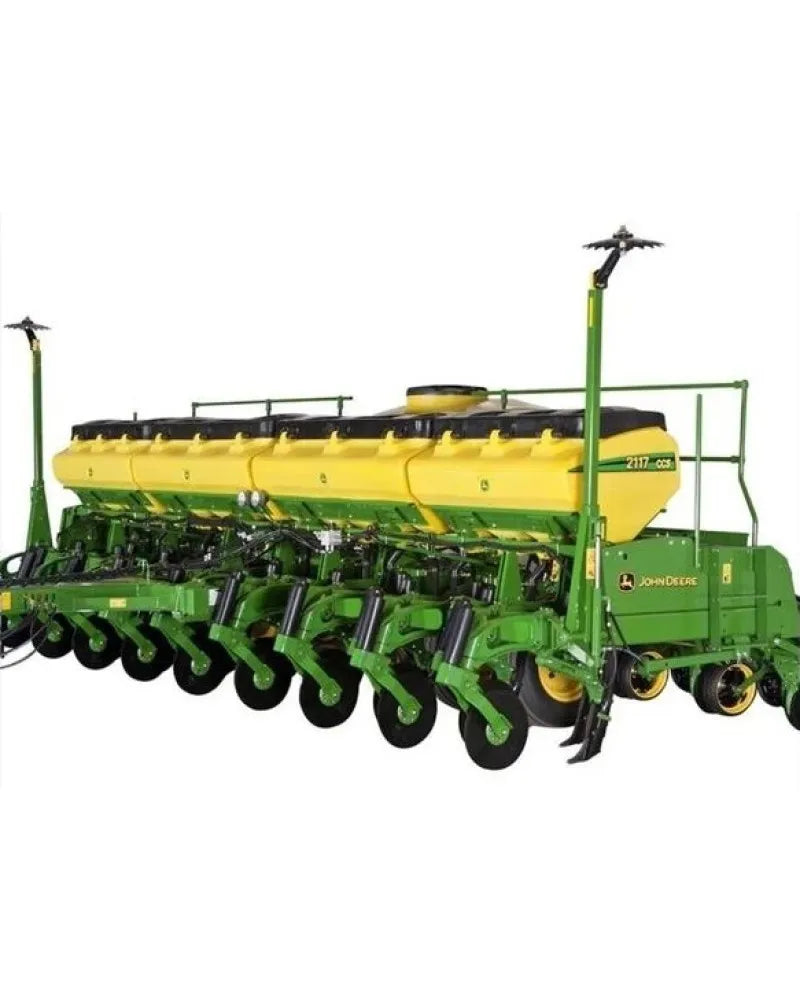

Illustrated factory Diagnostic Manual for John Deere Planters Models 2113, 2115, 2117, 2122, 2126, 2130 and 2134.

This manual will assist you in diagnosing for your planter.
You can use a Windows, Mac, or Android device to view this manual. You only need to have a PDF reader installed.

Covered Models (South America):
   2113 (SN: 140100-)
   2115 (SN: 140100-)
   2117 (SN: 140100-)
   2122 (SN: 140100-)
   2126 (SN: 140100-)
   2130 (SN: 140100-)
   2134 (SN: 140100-)

Table of Contents:
   Introduction
      Foreword
   General Information
      Safety
      General References
      References for Technical Information
      Diagnostic Philosophy
   Diagnostic Trouble Codes
      FVR - Variable Fertilizer Rate Codes
      PA1 - Planter Auxiliary 1 Codes
      PM1 - Planter Main 1 Codes
   Observable Symptoms
      Electrical System
      Hydraulic System
   Electrical System - MaxEmerge 5
      General Information
      Calibration Procedure
      Central Commodity System (CCS) - Theory of Operation
      Height and Motion Sensors - Theory of Operation
      Lighting - Theory of Operation
      Row Markers (Electro-Hydraulic) - Theory of Operation
      RowCommand - Theory of Operation
      Seed Monitoring - Theory of Operation
      Variable Rate Drive (Fertilizer) - Theory of Operation
      Variable Rate Drive (Seed) - Theory of Operation
      Central Commodity System (CCS) - Schematics
      Height and Motion Sensors - Schematics
      Lighting - Schematics
      Row Markers (Electro-Hydraulic) - Schematics
      RowCommand - Schematics
      Seed Monitoring - Schematics
      Variable Rate Drive (Fertilizer) - Schematics
      Variable Rate Drive (Seed) - Schematics
      Central Commodity System (CCS) - Diagnostics
      Height and Motion Sensors - Diagnostics
      Lighting - Diagnostics
      Row Markers (Electro-Hydraulic) - Diagnostics
      RowCommand - Diagnostics
      Seed Monitoring - Diagnostics
      Variable Rate Drive (Fertilizer) - Diagnostics
      Variable Rate Drive (Seed) - Diagnostics
   Electronic Control Units - MaxEmerge 5
      General Information
      Diagnostic Addresses by Control Unit
      Theory of Operation
      Mechanical Drive Planters - Schematics
      Variable Rate Drive (VRD) Planters - Schematics
      Diagnostics
   Electrical Component Information
      XA - Connectors
      XB - Connectors
      XE - Connectors
      XF - Connectors
      XM - Connectors
      XX - Connectors
      XY - Connectors
   Hydraulic System
      General Information
      Theory Of Operation
      Schematics
      Diagnostics
   Hydraulic System - Components
      B - Components
      C - Components
      D - Components
      F - Components
      G - Components
      H - Components
      M - Components
      O - Components
      V - Components
      X Components
      Y - Components

Format: PDF, 417 pages
Language: English
Publication Date: 02 Jan 2023
