John Deere 1450, 1450 CWS, 1450 WTS, 1550, 1550 CWS and 1550 WTS Combines (SN: 047354-048750) Operation and Test Manual (TM4835)

John Deere 1450, 1450 CWS, 1450 WTS, 1550, 1550 CWS and 1550 WTS Combines (SN: 047354-048750) Operation and Test Manual (TM4835)

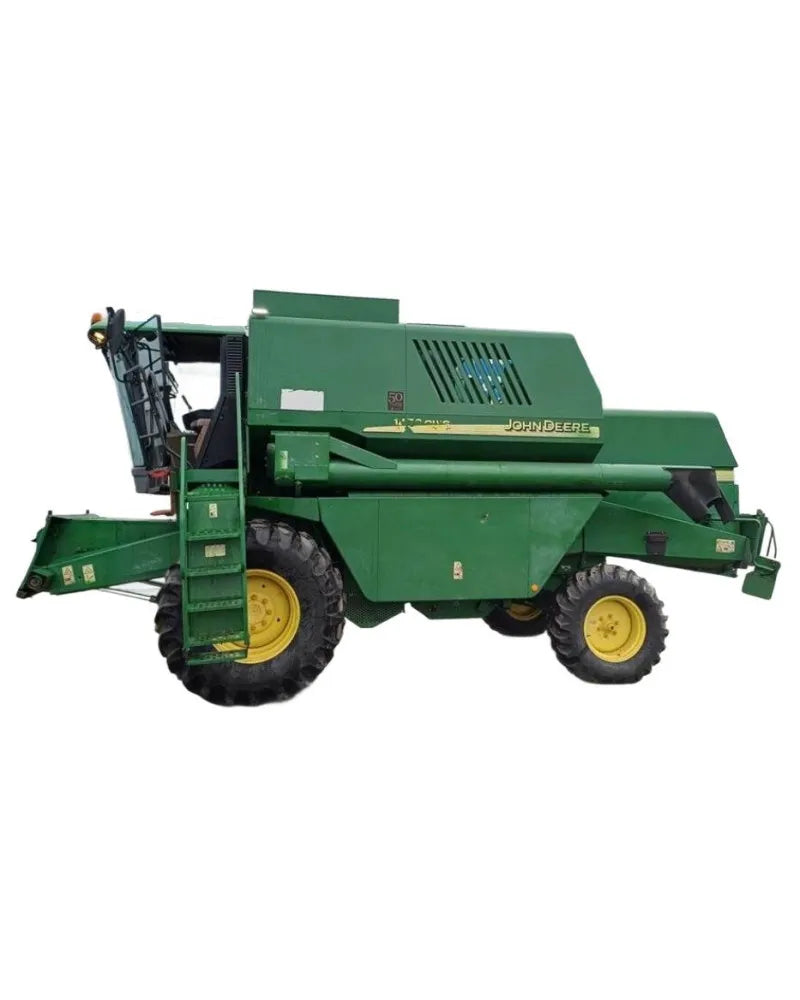

Illustrated factory Operation and Test Manual for John Deere Combines Models 1450, 1450 CWS, 1450 WTS, 1550, 1550 CWS and 1550 WTS.

This manual will assist you in diagnosing, and troubleshooting for your combine.
You can use a Windows, Mac, or Android device to view this manual. You only need to have a PDF reader installed.

Covered Models:
   1450 (SN: 047354-048750)
   1450 CWS (SN: 047354-048750)
   1450 WTS (SN: 047354-048750)
   1550 (SN: 047354-048750)
   1550 CWS (SN: 047354-048750)
   1550 WTS (SN: 047354-048750)
Table of Contents:
   Introduction
      Foreword
   Safety
      Safety Information
   Diagnostics
      AHC - Automatic Header Control
   Electrical System
      General Information
      Electrical System Diagrams
      Power Supply / Starting Motor
      Engine Stop (1550)
      Engine Stop (1450)
      Engine Electronic - Focus Level 4 (CWS and WTS)
      Fuse Tester
      1 - Instruments
      2 - Chopper Distributor Adjustment (Option for CWS and WTS)
      Lighting, Windshield Washer
      Radio, PY - PX
      Alarm Module # 1 / Stop Function
      Warnmodul # 2
      Cigarette Lighter
      Light Function
      Flasher Function
      Revolving Lights
      1 - Air Conditioning System
      2 - Rear View Mirror Adjustment (Option for CWS and WTS)
      Work Lights
      Straw Warning Device
      Stop Lights, Reel Speed Adjustment
      Separator Engagement / Unloading Drive
      Header Engagement / Reverser
      INFO-TRAK Monitor / Speed Monitoring
      Harvest Performance Monitor
      Cylinder, Concave and Fan Adjustment
      Cutting Platform Controller Board
      1 - Unloading Auger Swing
      1-1 - Four Wheel Drive (Option for 1450 and 1550)
      2 - Area Counter (CWS and WTS)
      3 - Shift Lock (CWS and WTS)
      Back up Alarm / Sieves Light
      Header Calibration Procedures
      Wiring Harnesses
   Power Train
      Specifications
      Checking Parts for Wear
      Testing Hydrostatic System
      Transmission
   Brakes, Steering and Rear Axle
      Brake System
      Drum Brakes
      Steering System
   Hydraulic System
      Hydraulic Symbols
      Hydraulic Lines
      Hydraulic Pump Drive
      Hydraulic Control Valve
      Hydraulic Reel Motor
      Hydraulic System Troubleshooting
   Cab
      Cab and Operator`s Seat
      Air Conditioning and Heating
      Ventilation and Heating - Troubleshooting
      Operational Tests and Troubleshooting
      Operation Air Conditioning System

Format: PDF, 368 pages
Language: English
Publication Date: 12 Apr 2003
