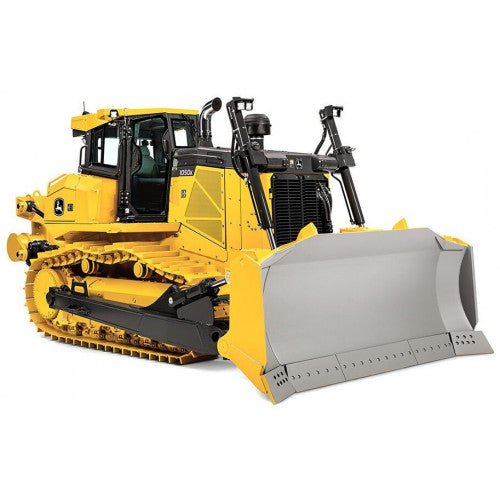

John Deere 1050K PL (SN. F318802-) Pipelayer Ready Crawler Dozer Diagnostic Manual (TM14351X19)

John Deere 1050K PL (SN. F318802-) Pipelayer Ready Crawler Dozer Diagnostic Manual (TM14351X19)

Illustrated Operation and Test Technical Manual for John Deere Pipelayer Ready Crawler Dozers Models 1050K PL

This manual contains high quality images, circuit diagrams, diagnostic procedures to help you to diagnostic, troubleshoot and repair your truck. This document is printable, without restrictions, contains searchable text, bookmarks, crosslinks for easy navigation.

This is Diagnostic manual, including electrical and hydraulic wiring diagrams, Repair manual are sold separate.

Covered models:
  1050K PL (PIN: 1T01050P_ _F318802—)

Contents:

   Foreword
   Manual Identification - READ THIS FIRST!
   General Information
      Safety
   Diagnostic Trouble Codes (DTCs)
      General Information
      Engine Control Unit (ECU) Diagnostic Trouble Codes
      Display Menu Handler (DMH) Diagnostic Trouble Codes
      Sealed Switch Module (SSM) Diagnostic Trouble Codes
      Transmission Control Unit (TCU) Diagnostic Trouble Codes
      Vehicle Control Unit (VCU) Diagnostic Trouble Codes
      Hydraulic Valve Controller (HVC) Diagnostic Trouble Codes
      Pipelayer Control Joystick (BCJ) Diagnostic Trouble Codes
      Pipelayer Control Unit (BHC) Diagnostic Trouble Codes
   Operational Checkout Procedure
      Operational Checkout Procedure
   Engine
      Theory of Operation
      System Diagrams
      Diagnostic Information
      Adjustments
      Tests
   Electrical System
      Theory of Operation
      System Diagrams
      Diagnostic Information
      Display Unit Operation
      Diagnostic Test Box
      Adjustments
      Tests
   Power Train
      Theory of Operation
      System Diagrams
      Diagnostic Information
   Hydraulic System
      Theory of Operation
      System Diagrams
      Diagnostic Information
      Tests
   Hydrostatic System
      Theory of Operation
      System Diagrams
      Diagnostic Information
      Tests
   Heating and Air Conditioning
      Theory of Operation
      System Diagrams
      Diagnostic Information
      Tests
   Dealer Fabricated Tools
      Dealer Fabricated Tools

Language: English
Format: PDF, 895 pages
