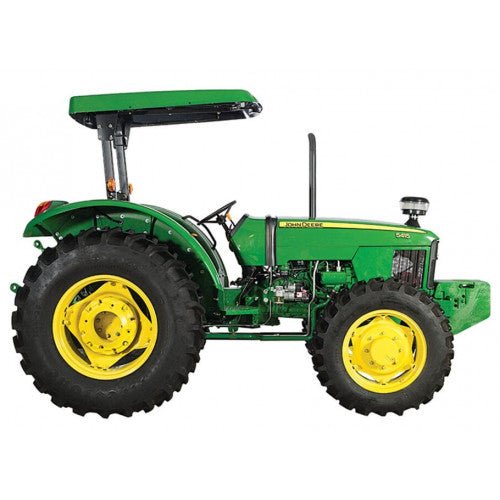

TM606719 - John Deere Tractors 5415, 5615, and 5715 Sevice Repair Technical Manual

Factory Diagnostic and Repair Service Manual for John Deere Tractors Models 5415, 5615, and 5715 (April 2013)

This manual contains high quality images, instructions to help you to operate, maintenance, diagnostic, and repair your truck. This document is printable, without restrictions, contains searchable text, bookmarks, crosslinks for easy navigation.

This is repair only manual, Diagnostic Manual with electrical wiring diagrams are sold separate.

Covered models:
  5415
  5615
  5715


Contents:


Foreword
   Version Date
   Safety
      Safety Measures
   General Information
      Specifications
      Tune-Up
      Predelivery Inspection
   Engine
      Engine Removal and Installation
   Fuel, Air Intake, Cooling and Exhaust Systems
      Speed Control Linkage
      Fuel System
      Air Intake System
      Cooling System
      Cold-Weather Starting Aid
      Exhaust System
   Electrical System
      Connectors
      Wiring Harnesses
      Charging Circuit
      Starting Motor Circuit
      Fuses, Relays and Switches
      Monitoring Systems
      Electrical Components
   PowrQuad and PowrQuad Plus Transmissions
      Removal and Installation of Components
      Transmission Shift Controls
      PowrQuad Module
      Reduction Gear
      Range Transmission
   Drive Systems
      Removal and Installation of Components
      U-Jointed Shafts and Torsion Damper
      Front-Wheel Drive Clutch
      Differential
      Hydraulic Pump Drive
      Final Drives
      Rear PTO
      Front PTO
   Steering and Brakes
      Hydrostatic Steering
      Brake Valve
      Rear Brakes
      Handbrake
      Hydraulic Trailer Brake
      Air Brakes
   Hydraulic System

Pages -  663
Language: English
Format: PDF

Unlimited downloads, Lifetime Access
Access PDF Contents & Bookmarks
Step-by-step instructions & clear diagrams
Trustworthy information directly from the manufacturer
