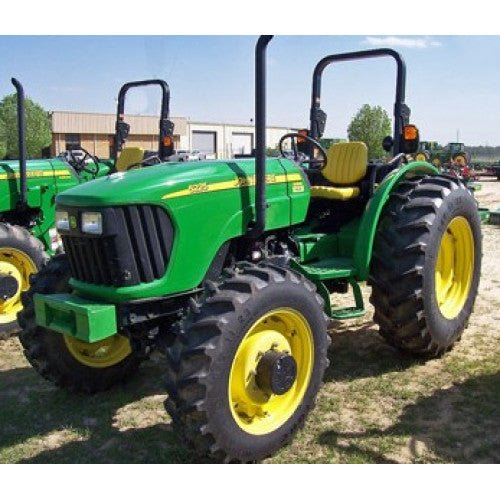

TM2197 - John Deere 5225, 5325, 5425, 5525, 5625, 5603 Tractors Diagnosis and Tests Service Manual

Factory Diagnosis and Tests Service Manual for John Deere USA Tractors 5225, 5325, 5425, 5525, 5625, 5603

This manual contains high quality images, circuit diagrams, instructions to help you to operate, maintenance, diagnostic, and repair your truck. This document is printable, without restrictions, contains searchable text, bookmarks, crosslinks for easy navigation.

Covered models:
  5625
  5603
  5225
  5325
  5425
  5525


Contents:


Foreword
   GENERAL
      Safety
      General Specifications
      General References
   DIAGNOSTIC TROUBLE CODES
      CCU Code Diagnostics
      HCU Code Diagnostics
      PTR Code Diagnostics
   OBSERVABLE SYMPTOMS
      Engines
      Fuel and Air
      Electrical
      Control Units
      POWRREVERSER Transmissions
      Drive Systems
      Steering and Brakes
      Hydraulics
      Operator Station
   SYSTEM DIAGNOSIS
      Starting, Charging and Start Aid
      POWRREVERSER Transmission
      Differential Lock
      MFWD
      Rear PTO
      Steering
      Rear Brakes
      Rear SCV System Diagnosis
      Mid-Mount Control Valve System Diagnosis
      Rear Hitch System Diagnosis
      Air Conditioning
   ENGINES
      General Information
      Tests and Adjustments
      Engine System Theory of Operation
   FUEL AND AIR
      General Information
      Fuel and Air Theory of Operation
   ELECTRICAL
      Load Center Fuses and Relays
      Tests and Adjustments
      Theory of Operation
      Functional Schematics
      Connector Information
   CONTROL UNITS
      General References
      Tests and Adjustments
      CCU
      HCU

Pages -  1889
Language: English
Format: PDF

Unlimited downloads, Lifetime Access
Access PDF Contents & Bookmarks
Step-by-step instructions & clear diagrams
Trustworthy information directly from the manufacturer
Get an exchange if you can't find the inform you need (See detail)
Detailed instructions for opening and using the manual file
