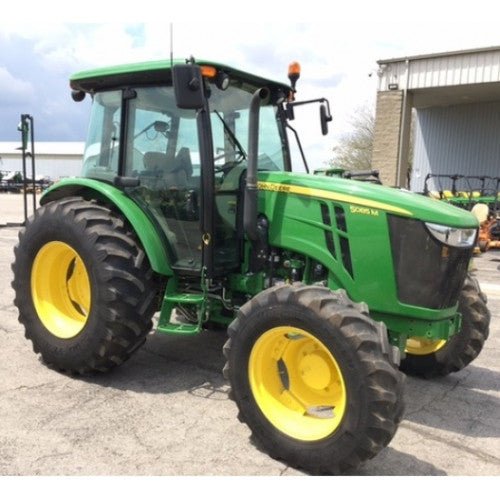

TM134319 - John Deere 5085M, 5100M, 5100MH, 5100ML, 5115M, 5115ML (FT4) Tractor Service Repair Manual

Factory Service Repair Manual for John Deere Tractors 5085M, 5100M, 5100MH, 5100ML, 5115M, & 5115ML (FT4)

This manual contains high quality images, instructions to help you to troubleshoot, and repair your truck. This document is printable, without restrictions, contains searchable text, bookmarks, crosslinks for easy navigation.

This is repair only manual, Diagnostic Manual with electrical wiring diagrams are sold separate.

Covered models (S.N. MY2014-, MY2014-Dec-2014, MY2016-):
  5085M
  5100M
  5100MH
  5100ML
  5115M


Contents:


Foreword
   General Information
      Safety
      General Specifications
      Fuels and Lubricants
      Serial Number Locations
   Engine
      Engine
      Cooling System
   Fuel, Air Intake, Exhaust, and Cooling
      Fuel System
      Air Intake System
      Exhaust System
   Electrical
      Battery, Starter and Alternator
      Electrical System Components
      Wiring Harnesses
   Drive Systems and Transmissions
      Separation
      SS Transmission
      PR Transmission
      PR Plus Transmission
      Clutch Assembly-SS Transmission
      Clutch Assembly-PR Transmission
      Clutch Assembly-PR Plus Transmission
      Differential
      Control Valve
      Final Drives
      Hi-Crop Final Drives
      Rear PTO Drive Shaft
      Mechanical Front-Wheel Drive
      Creeper Assembly
   Steering and Brakes
      Steering Repair
      Brake Repair
   Hydraulics
      Hydraulic Pump and Filter
      Hydraulic Oil Cooler
      Hitch Valve
      Hydraulic Rear Selective Control Valve
      Hydraulic Mid-Mount Selective Control Valve
      Hydraulic Lines
      Front Hitch
   Miscellaneous
      Front Axle-2WD
      3-Point Hitch

Pages -  1251
Language: English
Format: PDF

Unlimited downloads, Lifetime Access
Access PDF Contents & Bookmarks
Step-by-step instructions & clear diagrams
Trustworthy information directly from the manufacturer
Get an exchange if you can't find the inform you need (See detail)
Detailed instructions for opening and using the manual file
