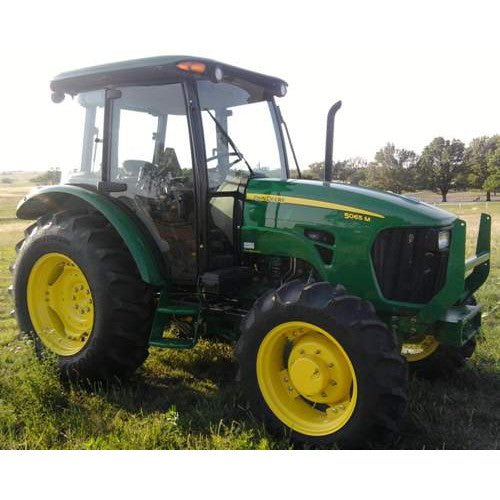

TM102619 - John Deere 5065M, 5075M, 5085M, 5095M, 5105M, 5105ML & 5095MH Tractors Repair Service Manual

Factory 5065M, 5075M (IT4/Stage IIIB), 5085M, 5095M, 5105M, 5105ML & 5095MH (Tier 3/Stage IIIA) Tractors Repair Servicel Manual

This manual contains high quality images, instructions to help you to operate, maintenance, diagnostic, and repair your truck. This document is printable, without restrictions, contains searchable text, bookmarks, crosslinks for easy navigation.

This is repair only manual, Diagnostic Manual with electrical wiring diagrams are sold separate.

Covered models:
  5065M
  5075M
  5085M
  5095M
  5095MH
  5105M
  5105ML


Contents:


Foreword
   General Information
      Safety
      General Specifications
      Fuel and Lubricants
      Serial Number Locations
   Engine
      Engine
      Cooling System
   Fuel, Air Intake and Exhaust Systems
      Fuel System
      Throttle Controls
      Air Intake System
      Air Exhaust System
   Electrical System
      Battery, Starter and Alternator
      Electrical System Components
      Wiring Harnesses
   Power Train
      Separation
      SyncShuttle Plus™ Transmission
      SyncReverser™ Transmission and PowrReverser™ Transmission
      PowrReverser Plus™ Transmission
      Clutch Assembly-SyncShuttle Plus™ Transmission
      Clutch Assembly-SyncReverser™/PowrReverser™ Transmission
      Clutch Assembly-PowrReverser Plus™ Transmission
      Differential
      Control Valve
      Final Drives
      Hi-Crop Final Drives
      Rear PTO Drive Shaft
      Mechanical Front-Wheel Drive
      Creeper Assembly
   Steering and Brake
      Steering Repair
      Brake Repair
   Hydraulic
      Hydraulic Pump and Filter
      Hydraulic Oil Cooler
      Hitch Valve
      Hydraulic Rear Selective Control Valve-Mono-Block Valve
      Hydraulic Rear Selective Control Valve-Sectional Valve
      Hydr
